Product Details
About this product

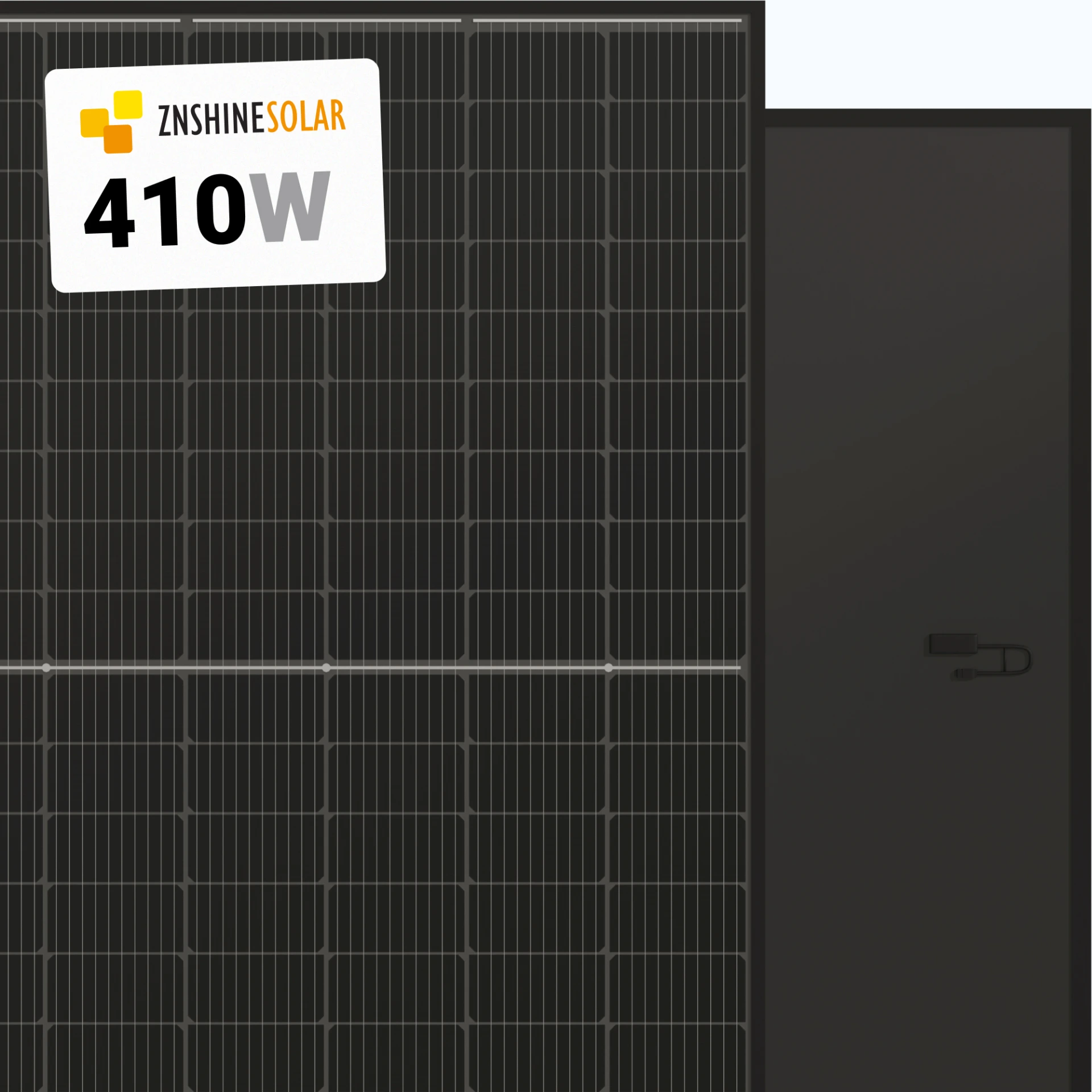

The ZXM7-SH108-410 is part of the ZXM7-SH108 Series, one of ZnShine Solar’s latest high-performance solar panels. Featuring PERC (Passivated Emitter Rear Contact) technology and half-cut cells, this panel maximizes sunlight absorption while minimizing energy loss. With a sleek all-black design and robust construction, it is ideal for both residential and commercial rooftops.
Key Features
- 108 half-cut PERC solar cells for enhanced efficiency and shade tolerance
- 410 W nameplate capacity
- High module efficiency of 20.97%, exceeding market averages
- Low temperature coefficient: -0.35% efficiency loss per 1.8°F above 77°F
- MC4-compatible connectors for easy installation
- Sleek, all-black design with smooth, seamless surface
- Strong and durable black anodized aluminum frame
- Supports snow loads up to 5400 Pa and back loads up to 2400 Pa
Performance & Reliability
- Superior power output with PERC technology and antireflective coating
- Minimal degradation: max 2% first year, then 0.55% per year
- Guaranteed to retain at least 84.8% of nominal capacity after 25 years
- High-quality manufacturing with rigorous testing ensures reliability
Warranty
- 12-year product warranty
- 25-year performance warranty
Specifications
- Maximum system voltage: 1500 V DC
- Efficiency: 20.97%
- Cell type: Half-cut PERC
- Connectors: MC4-compatible

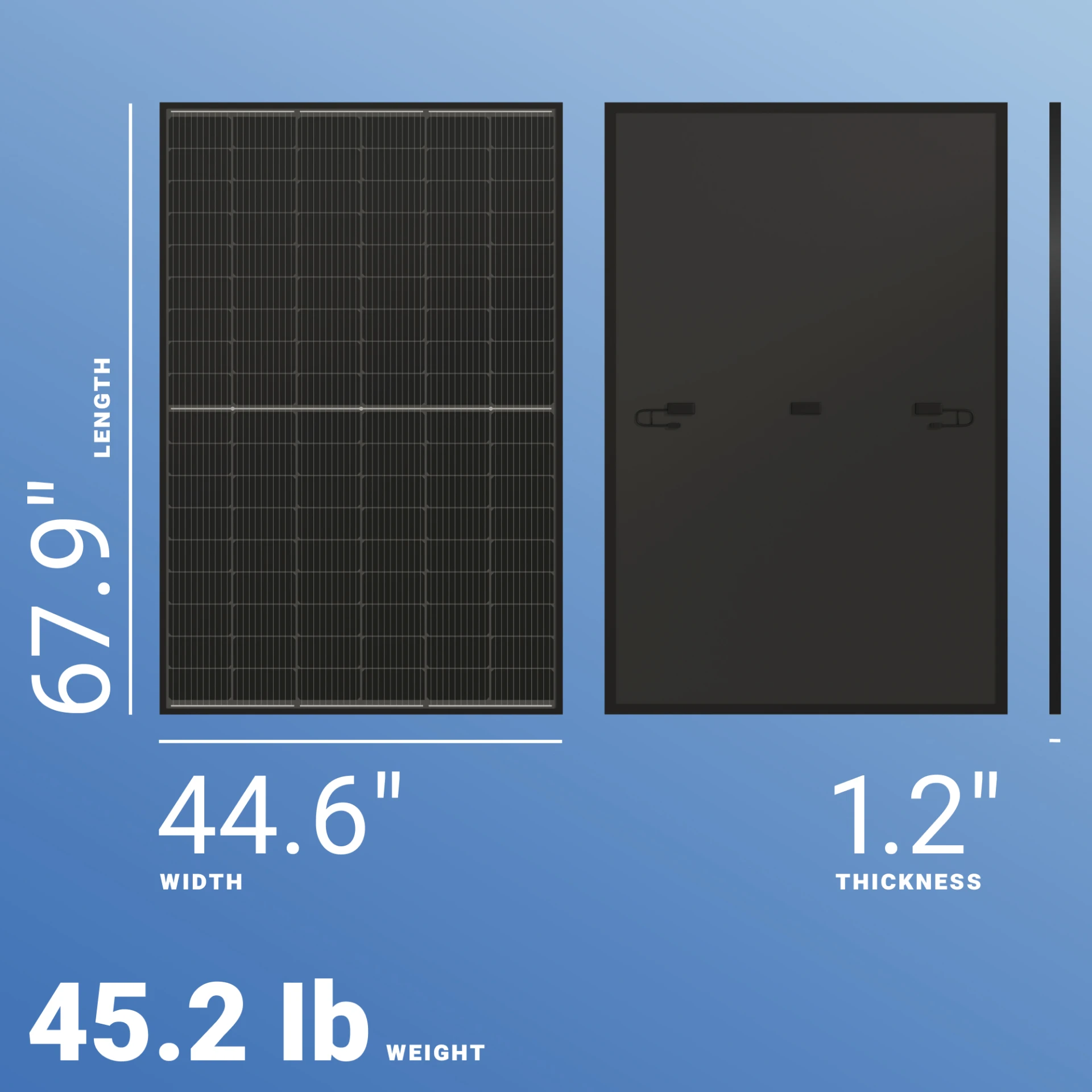

Dimensions & Weight
- Size: 67.9" x 44.6" x 1.2"
- Weight: 45.2 lb
