Product Details

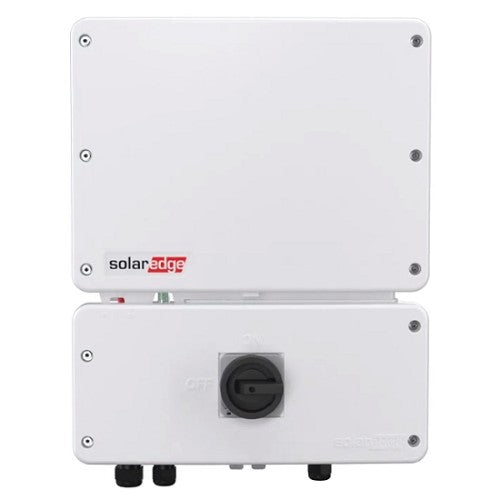

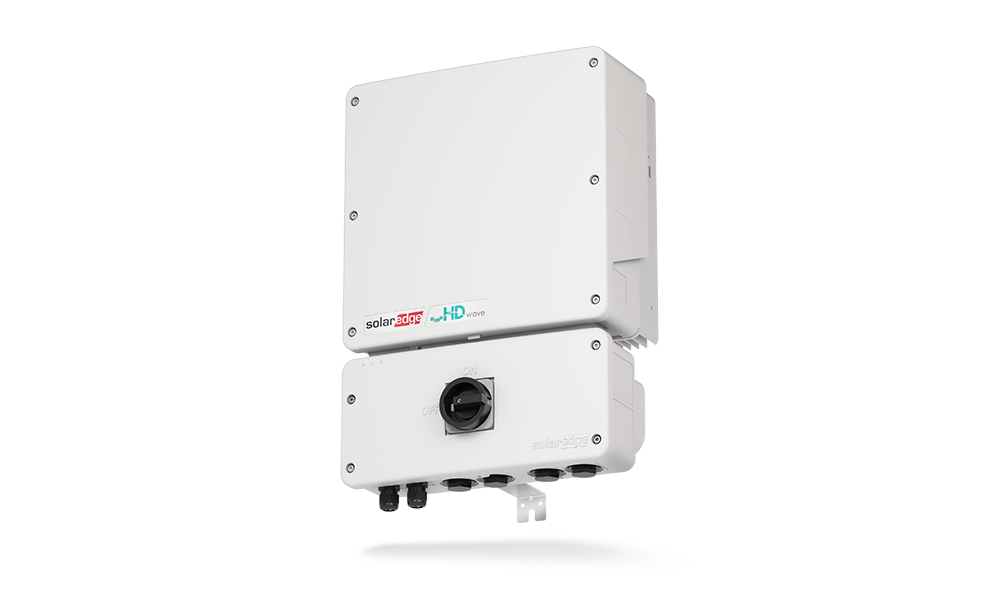

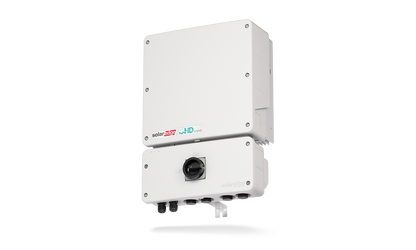

The SolarEdge HD-Wave SE3800H-US 3.8 kW Inverter is a premium single-phase string inverter designed for residential solar systems. Built to work seamlessly with SolarEdge power optimizers, it delivers top-tier conversion efficiency, robust safety compliance, and convenience in installation and monitoring. Whether indoor or outdoor, this inverter offers superior performance, reduced energy loss, and module-level data to keep your system working at its best.
Key Features
- Designed exclusively for use with power optimizers to maximize energy yield.
- Record-breaking efficiency – up to 99.2% maximum inverter efficiency, with a CEC weighted efficiency of 99%.
- Integrated Arc Fault Protection and Rapid Shutdown caps (NEC 2014/2017 690.11 & 690.12) for enhanced safety.
- UL1741 SA certified; compliant with CPUC Rule 21.
- Lightweight and compact: can be handled by one person and installs on a supplied bracket.
- Natural convection cooling (no fan) – quieter operation.
Why Choose SolarEdge SE3800H-US?
- Maximized energy yield with optimizer-based design.
- Superior safety features (Arc-Fault, Rapid Shutdown) ensuring compliance with strict electrical codes.
- Quiet and low maintenance, thanks to fanless cooling and high efficiency.
- Built-in module-level monitoring simplifies system oversight and fault detection.
Ideal For
- Homeowners installing solar with power optimizers seeking high performance.
- Installations where safety compliance is critical (local electrical regulations / NEC codes).
- Situations where noise and space are concerns.
- Systems wanting reliable monitoring and minimal downtime.
Installation Tips
- Must be paired with SolarEdge power optimizers to function as designed.
- Install by a licensed electrician, conforming to local NEC / electrical codes.
- Ensure mounting location allows adequate airflow for natural convection.
- Use proper conduit sizes for AC/DC outputs as per the datasheet.
