Product Details
The FOX HUB‑G2 is a high-performance, all-in-one smart energy management system designed for residential energy storage. It consolidates power from multiple sources—solar inverters, batteries, the utility grid, and backup generators—and automatically manages and distributes electricity to your home. With real-time monitoring and intelligent automation, FOX HUB‑G2 improves energy efficiency, safety, and reliability, providing peace of mind and uninterrupted power supply.
Key Features
- Automatic Off‑Grid Protection – Keeps critical loads powered during grid outages.
- Seamless On/Off‑Grid Transition – Smoothly switches between grid-connected and off-grid modes.

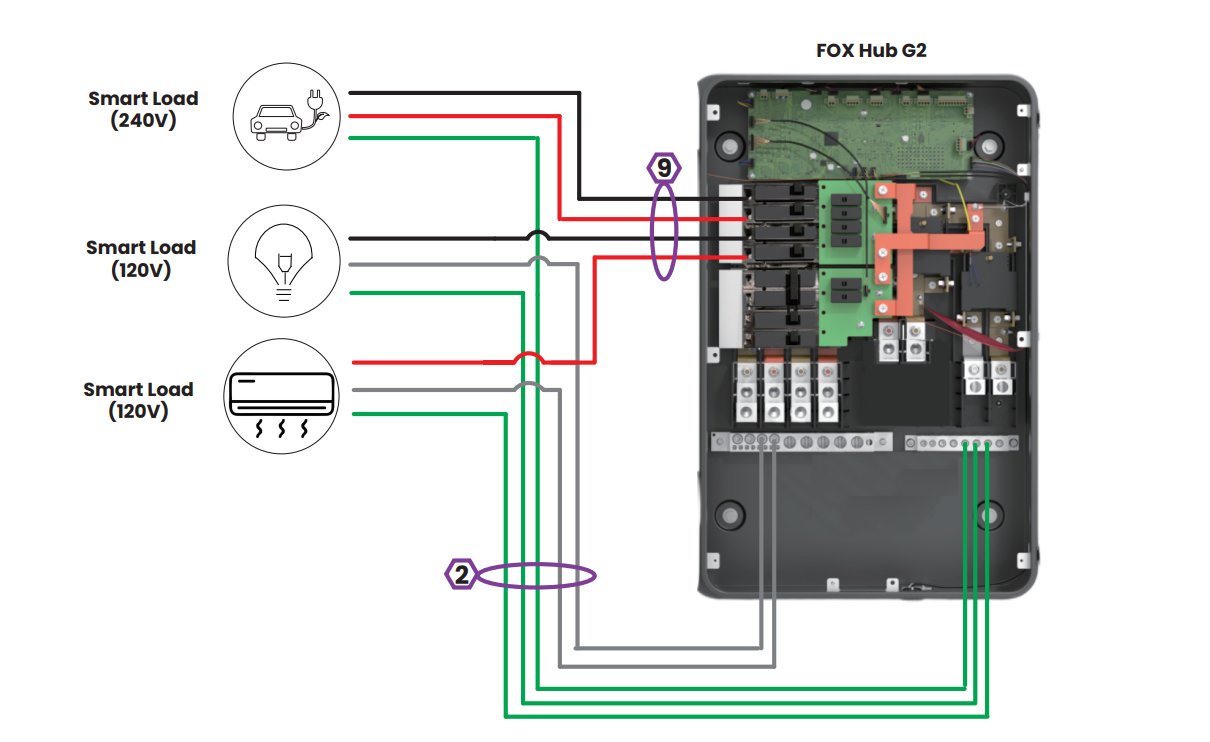

- Smart Load Shedding – Automatically prioritizes loads to reduce system stress and ensure critical appliances stay powered.
- Inverter Scalability – Supports multiple inverters for flexible capacity expansion.
- Generator Compatibility – Works with backup generators for hybrid or emergency setups.
| Feature | Specification |
|---|---|
| Nominal AC Input Current | 200 A |
| Nominal AC Input Voltage | 240 Vac |
| Output Voltage | 120/240 Vac |
| AC Voltage Range | 211‑264 Vac |
| Rated Frequency / Range | 60 Hz / 57‑63 Hz |
| Grid Disconnection Switchover Time | <15 ms |
| Max Supported Inverters | 4 |
| Communication | CAN, RS‑485 |
| Accuracy | ±0.5% |
| Dimensions (W × H × D) | 443 × 650 × 156.6 mm |
| Weight | 16 kg |
| Noise | <35 dB |
| Operating Temperature | ‑20°C to +50°C |
| Protection Rating | Type 3R |
| Warranty | 12.5 Years |
Why Choose FOX HUB‑G2?
- Reliable & Safe – Certified to UL and CSA standards for stable operation in any environment.
- Flexible & Scalable – Supports multiple energy inputs and load configurations for homes or businesses.
- Smart & Efficient – Real-time energy monitoring, automated load management, and cost savings.
- Convenient Control – Works with FoxCloud US app for remote monitoring, custom settings, and alerts.
Ideal For
- Home backup power systems
- Solar + storage integrations
- Remote or power-sensitive locations
- Energy-conscious households seeking independence and efficiency
Installation must comply with local electrical codes and should be performed by a licensed electrician.
Ensure generators or additional inverters are compatible with FOX HUB‑G2.
Extreme conditions (high heat, cold, humidity) should follow manufacturer guidelines.
