Product Details
- High Power Output 11.4kW maximum output to meet most household electricity needs
- Large Storage Capacity Up to 20kWh with 5 stacked LFP battery modules for extended power supply
- Flexible Installation Supports both AC and DC coupling, compatible with generators for versatile installation options
- Smart Energy Management Equipped with Fox Hub G2 for remote monitoring and control
- Certified Safety UL9540 and CEC certified, meeting US safety standards
Package Includes
- 1 × 11.4kW Hybrid Inverter
- Up to 5 × 4kWh LFP Battery Modules
- 1 × Base Mounting Rack
- 1 × Fox Hub G2 Energy Management Unit
Technical Specifications
- Max PV Input Power 22.8kW
- Max PV Input Voltage 600V
- MPPT / Strings 3 MPPT / 4 strings
- Communication Wi-Fi and 4G supported
- Operating Environment -25°C to 55°C, Type 4X outdoor rated
- Weight Approx 202.1 kg (without additional battery modules)
- Dimensions 570mm × 1124mm × 380mm
- Warranty 12.5 years
Installation and Compatibility
- Installation Ground-mounted, suitable for various applications
- Compatibility Works with Fox Hub G2 and generator integration
- Operating Modes Multiple energy operation modes to suit different needs

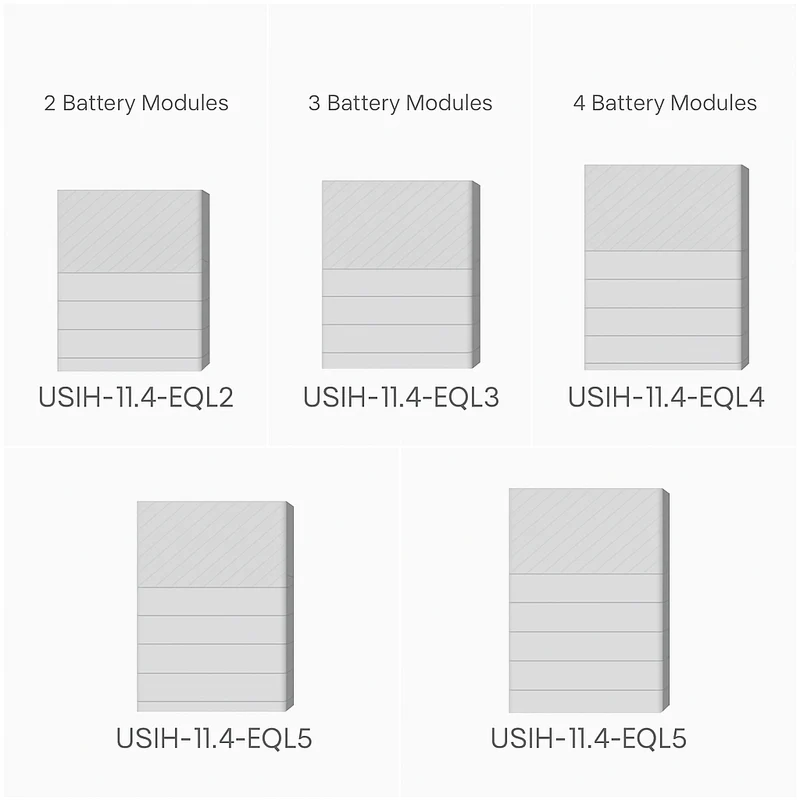

- Battery Expansion Supports stacking up to 5 battery modules for increased storage capacity
